IVY573
CPVC FM4882 Approved material
Installation accessories for wall panels
Description of products
PVC
Adhesive90-degree "R" shape corner transition 7R952
PVC
Inside Corner transition INRR
PVC
Inside Corner transition INRL
PVC
Outside Corner transition OUTRL
Product specifications
| Product type | Product code | Color | Size/Thickness |
|---|---|---|---|

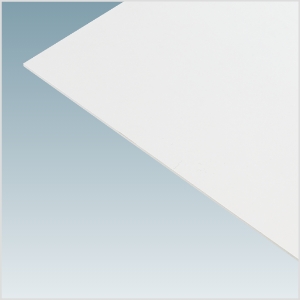

| IVY | 573 | White | Thickness : 2mm Size : 4ft × 8ft (1220mm × 2440mm) |
-
Product code 573 Color White Size/Thickness Thickness : 2mm
Size : 4ft × 8ft (1220mm × 2440mm)
Installation accessories speficitations
| Product type | Product code | Color | Size/Thickness |
|---|---|---|---|

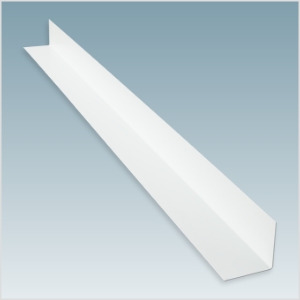

| 90-degree corner panel | 7L952 | White | Thickness : 2mm, 90-degree Size : R=5/32inch, 3 3/4inch × 3 3/4inch × 8ft (R=4mm, 95mm × 95mm × 2440mm) |
| 7R952 |
Thickness : 2mm, 90-degree Size : R=1 5/8inch, 3 3/4inch × 3 3/4inch × 8ft (R-41mm, 95mm × 95mm × 2440mm) |
||
| In corner | INRR | White |
Thickness : 2mm, Inside Corner Features Size : R=1 5/8inch, 3 3/4inch × 3 3/4inch × 3 3/4inch, (R=4mm, 95mm × 95mm × 95mm) |
| INRL |
Thickness : 2mm, Inside Corner Features Size : R=5/32inch and 1 5/8inch, 3 3/4inch × 3 3/4inch × 3 3/4inch, (R=4mm, 95mm × 95mm × 95mm) |
||
| Out corner | OUTRL | White |
Thickness : 2mm, Outside Corner Features Size : R=5/32inch, 1 5/8inch × 7 13/32inch × 3 3/4inch, (R=4mm, 188mm × 188mm × 95mm) |

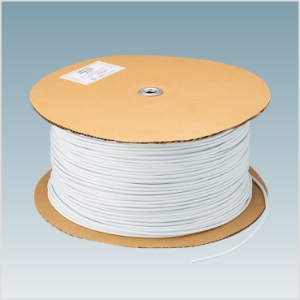

| Welding rod | 6171 | White | Diameter 0.16inch × 1,000ft (Diameter 4mm × 300mm) 5kg |

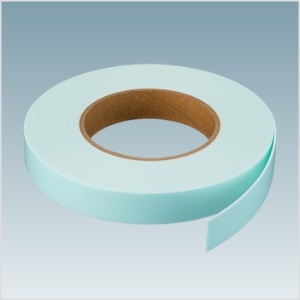

| Double-sided adhesive tape "Takitape" | 47 | - | Wide 25/32inch × 33ft (Wide 20mm × 10m) |

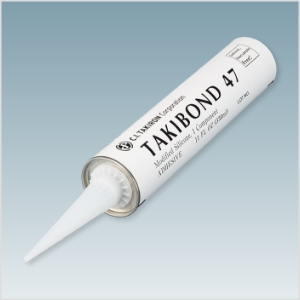

| Adhesive "Takibond" | 47 | - | 11FL oz (330ml) |
-
Product code 7L952 Color White Size/Thickness Thickness : 2mm, 90-degree
Size : R=5/32inch, 3 3/4inch × 3 3/4inch × 8ft (R=4mm, 95mm × 95mm × 2440mm)Product code 7R952 Color White Size/Thickness Thickness : 2mm, 90-degree
Size : R=1 5/8inch, 3 3/4inch × 3 3/4inch × 8ft (R-41mm, 95mm × 95mm × 2440mm)
-
Product code INRR Color White Size/Thickness Thickness : 2mm, Inside Corner Features
Size : R=1 5/8inch, 3 3/4inch × 3 3/4inch × 3 3/4inch, (R=4mm, 95mm × 95mm × 95mm)Product code INRL Color White Size/Thickness Thickness : 2mm, Inside Corner Features
Size : R=5/32inch and 1 5/8inch, 3 3/4inch × 3 3/4inch × 3 3/4inch, (R=4mm, 95mm × 95mm × 95mm)
-
Product code OUTRL Color White Size/Thickness Thickness : 2mm, Outside Corner Features
Size : R=5/32inch, 1 5/8inch × 7 13/32inch × 3 3/4inch, (R=4mm, 188mm × 188mm × 95mm)
-
Product code 6171 Color White Size/Thickness Diameter 0.16inch × 1,000ft (Diameter 4mm × 300mm) 5kg
-
Product code 47 Color - Size/Thickness Wide 25/32inch × 33ft (Wide 20mm × 10m)
-
Product code 47 Color - Size/Thickness 11FL oz (330ml)
