Features

Provides laser-beam shielding capability with an optical density (OD value) of 4 to 6.
Since the material is PVC, (H)TSLA can do secondary processing such as cutting, drilling and bonding.
TSLAND has antistatic performance and can use in clean rooms.
Superb Fire Resistance.
  • UL 94 flame-retardant classification is V-0 to provide excellent fire resistance.
    Click here (Test method of UL94)
  • The oxygen index in the JIS K7201-2 flammability test is 53 (refer to the table).

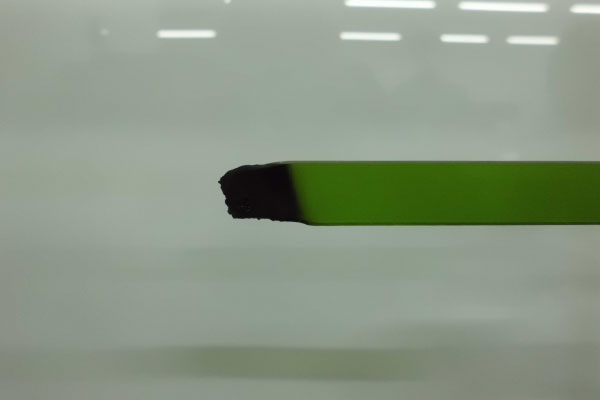

(H)TSLA
Oxygen Index＝53
Reference: Acrylic
Oxygen Index≒15
Fire resistance video
Oxygen IndexFlammability Scale
22 or lessCan catch fire and burn
23 to 27Can burn but is self-extinguishing
27 or moreFire-resistant
Superb Impact Resistance.（DuPont Impact Test）

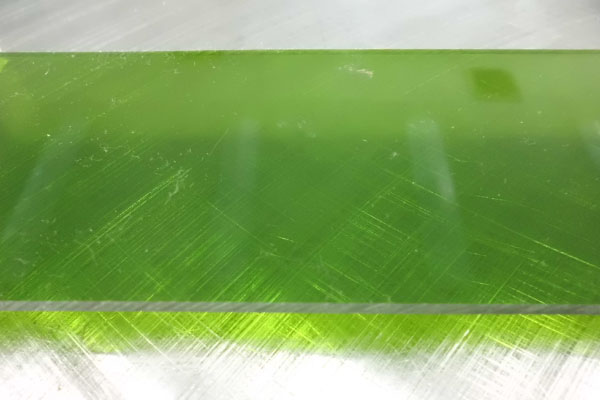

(H)TSLA：No cracking

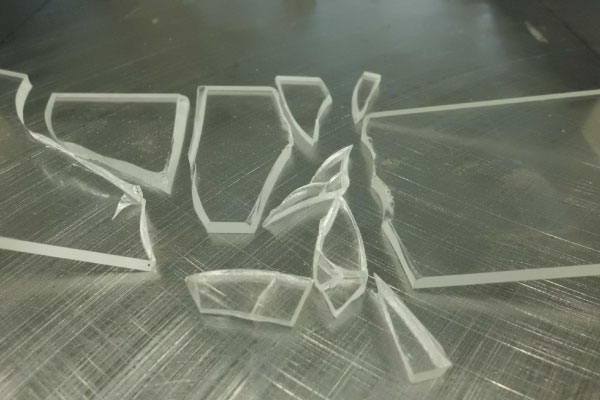

（Reference）Acrylic: Cracking

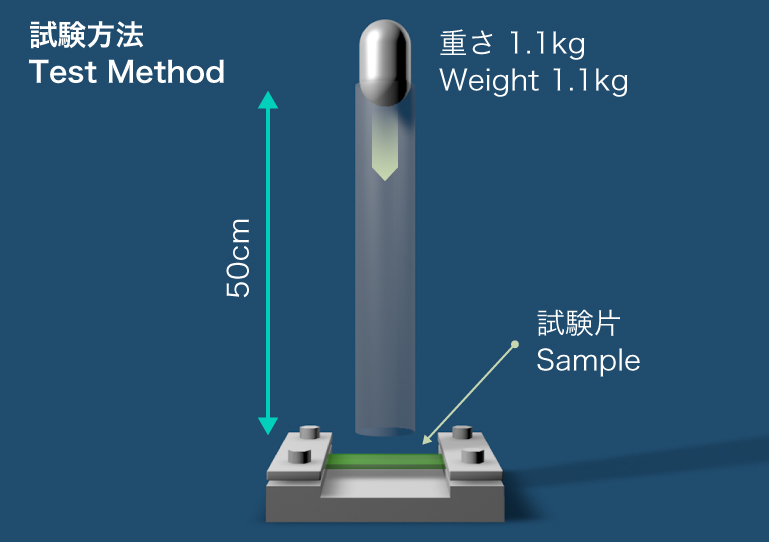

DuPont Impact Test
